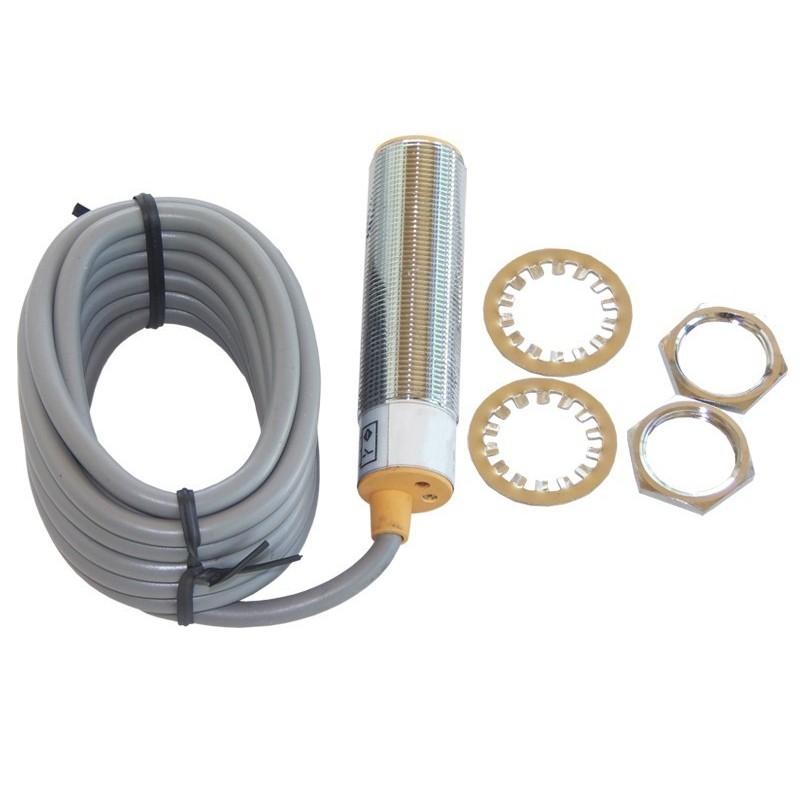

10/30 VDC proximity switch 5mm distance

ZZYCA18-5PAA/R1
Detection distance 8mm
POWER SUPPLY 10/30 VDC SCR Controltable silicon
CONTACT NORMALY OPEN

Detectable object: Conductor and dielectric
Consumption current DC (NPN、PNP) DC12V-8mA, 24V-15mA, AC 10mA DC<15mA、AC<10mA
Output current 200mA, AC 300mA、DC<3V、AC<7V
Output voltage drop DC (NPN、PNP) 3V, 7V
DC/AC Responce frequency 50Hz，20Hz
Shell material: Metal
Working environment temperature -25℃~+70℃
Insulation resistance 50MΩ
Protection grade: IEC IP65 IEC standard IP67
